Machine Type: Linear Motor Driven Pad Printing Module
Manufacturer: microPrint
Origin: Made in Switzerland

Download the Brochure

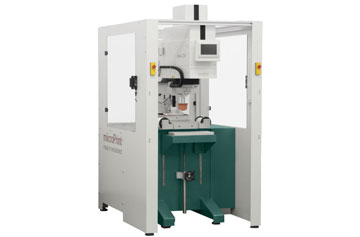

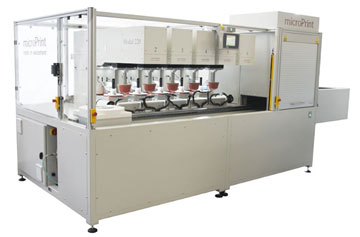

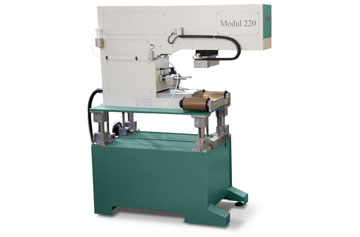

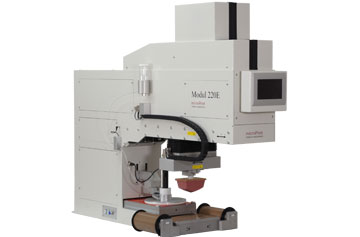

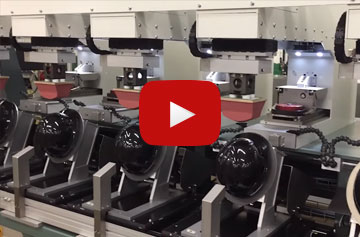

The microPrint MODUL 220 is the big daddy in their line of MODUL Series linear motor driven pad printing machine modules. The MODUL line of machinery can be ordered as standalone print heads or as part of an automated system. Several MODUL machines can be combined into one centralized system which can be operated over a single touch screen display and the multiple heads (machines) data is saved in central single Beckhoff PLC. Furthermore, settings that are saved from one MODUL, can be moved or even copied to another MODUL in the chain.

Each MODUL 220 pad printing head can be outfitted with either 180 or 200mm diameter (7" or 7.87") magnetic ink cups that are outfitted with adjustable pneumatic cup pressure and like the other smaller MODUL machines in the line-up, the MODUL 220 is completely programmable from the touch screen, and you can program the machine to pick up various artworks on the cliché at different locations on the cliché. The MODUL Series of pad transfer machines are designed to be labor saving systems without having to handle and print parts multiple times. The MODUL Series pad printing machines are fast (linear motor technology), flexible, one-color pad printing machines.

The pad and cliché positions (X/Y/Z) can be easily programmed via the user-friendly touchscreen and the print sequence can be freely defined with simple-to-learn graphic icons. Furthermore, you can pick up the ink from the cliché multiple times to allow for more opaque prints in each cycle – this is commonly used when printing large white background images on dark substrates.

All MODUL Series pad printers are equipped with an Ethernet interface. The machine parameters can be saved with PC software or automatically over an internal SPS control onto your local server. Remote access allows a microPrint technician to rectify any problems directly and software updates can be loaded remotely as required. As an optional add-on, the MODUL Series of pad printing modules can be accessed with real-time Ethernet (EtherCAT) which gives your plant more control to select machines/ job programs and transfer them to various production cells in your plant. With this option you have additional control signals and operating parameters that can be accessed from management’s desktop computer or laptop. As a further option, all MODUL Series units can be upgraded with a barcode scanner with which the appropriate printing job sequence can be selected without human error. This reduces setup times and simplifies the work/ set-up steps.

All standalone MODUL Series machines are equipped with two interface ports for adding automation accessories. This makes it much easier for the customer or automation house to mount their own automation components. Several options are available such as: sensors to recognize that the part is present, vacuum units with monitoring system for lightweight parts, pneumatic clamping/ part retainers or pneumatic part shuttle devices and part rotating units.

• Fast Job changeovers with all parameters stored in the PLC
• Lightning-fast production speeds with linear and servo motor controls
• Crafted with precision and care in Switzerland, ensuring the highest quality of workmanship
• Automatic Pad Cleaning & Ink Viscosity controls for easy maintenance and improved performance
• Intuitive touchscreen interface for easy navigation and control
• Laser cut & welded construction for superior strength and durability
• Interfaced into an automated system quickly with built in RS-232 port
• World class components to ensure maximum reliability and performance
