DT-125-1C One Color Pad Printing Machine
One color pad printing machine with 90mm closed ink cup.
Machine Type: Semi-Automatic Pad Printing Machine
The DT-125-1C pad printing machine is a compact and economical one color pad printing system that is both user-friendly and quick to setup. It features a membrane control panel on the front faceplate and the easily adjustable pad stroke length controls are on the right side of the machine with numerical calibration. The DT-125-1C pad printer comes with a solid built welded steel machine base and it has adjustable floor levelers and a height adjustable work table. Inside the machine base you have room to store your pad printing supply items like; inks, thinners, ink cups, mixing cups, stir sticks, etc. This DT-125-1C is equipped with one ink cup (see specs for size) and a X/Y/R adjustable cliché holder for precise alignment of artworks. The clichés can be; photo polymer, thin steel (0.5mm), thick steel (10mm) or laser etched varieties and DECO TECH provides a full array of consumable supplies, technical support & product training for our DT SERIES of pad printing machinery. This DECO TECH pad printing machine is backed with a one year warranty against defects in manufacturing.
Call the experts at (714) 639-DECO to find out more.
FEATURES
- Micro-Processer Controlled – PCB
- Membrane Switch Control Panel with LCD Display
- Festo and SMC brand Pneumatics throughout
- Heavy-Duty Steel Machine Base with Storage Cabinet for Supplies

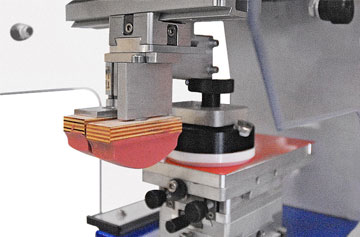

- Height Adjustable Worktable with X/Y and Skew Adjustment
- T-Slot Table for Quick Mounting of Tooling
- Easily Adjustable Stroke Lengths (pad to part and pad to plate)
- E-Stop Safety Circuit and OSHA Approved Safety Guarding
- Complies with CE Safety Standards
- Comes with Foot Switch as Standard
- Comes with Tool Set and Operators Manual
SPECIFICATIONS
| Technical Data | DT-125-1C |
|---|---|
| Printing Capacity: | up to 1,800 pph |
| Drive: | Electro-Pneumatic |
| Printing Force: | 1,178 N |
| Air supply | 5-6 bar (87 psi) |
| Air consumption: | 3 cfm @ 80 psi |
| Control system: | 12V PCB |
| Power connection: | 110V/ 220V 50/ 60 Hz |
| Control voltage: | 24 VDC |
| Weight (Net/ Gross): | 75 kg (165 lbs) - 135 kg (298 lbs) |
| Plate size with ink cup: | 100 x 215mm (standard) |
| Vertical pad stroke: | 50mm (1.97") |
| Horizontal pad stroke: | 125mm (4.92") |
| Plate Thickness: | 0.5 or 10mm |
| Ink cup size (ID): 90mm (3.54") |
Print size (diameter): 80mm (3.14") |
