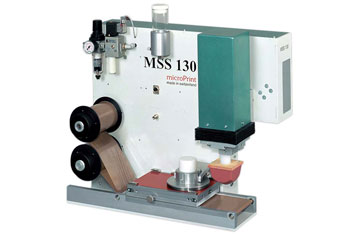

MSS-130 Swivel Pad Printing Machine-Single Color
Machine Type: 90 degree Pivoting Pad Printing Machine
Manufacturer: microPrint
Origin: Made in Switzerland
The microPrint model MSS-130 is a specially designed pad printer that can pivot the printing pad upward 90° to print on the horizontal plane. This unique and innovative pad printing machine is perfectly suited for interfacing into an automated production line, where you need to articulate the printing pad to print on the edge of a particular product in the horizontal plane. This unique swiveling pad printing machine is often used for pad printing on electronics, medical devices and automotive components.
The MSS-130 can be set up with the operator interface panel mounted on the front or on the backside of this machine, making access to the machines controls simple if used in an automation or as a stand-alone printer. The MSS-130 is also equipped with an automatic pad cleaning device that uses deionized shipping tape to clean the silicone pad. You can program the machine to clean the pad every cycle or every few cycles (programmable from 1 to 99). You can also add the VISCOMATIC™, which is our optional ink viscosity control system that continually monitors and adjusts the inks viscosity range. The MSS-130 machine can also be purchased in a mirror image so that you can have a machine mounted on the left and right side of a linear indexing conveyor and have the two machines in the same orientation.
FEATURES
- Programmable automatic pad cleaning device (optional but recommended)
- Extremely fast cliché (plate) changeover without any tools
- VISCOMATIC™ ink viscosity control system
- Easy wide open access to the cliché and ink cup for fast set-ups
- Intelligent touch screen controls with easy to use graphic icons
- X/Y/R cliché holder and X/Y/R pad adjustment
- Automation interface with RS-232 port
microPrint rewrote the book on pad printing technology with their many innovations, and today microPrint is the world leader in providing innovative solutions for the discerning pad printing customer.
Call the experts at (714) 639-DECO to find out more.
SPECIFICATIONS
| Technical Data | MSS-130 |
|---|---|
| Printing Capacity: | up to 2,000 pph |
| Drive: | Pneumatic |
| Printing Force: | max. 420 N |
| Air supply | 5-6 bar (87 psi) |
| Air Consumption: | 2 cfm @ 80 psi |
| Control system: | PLC 24V |
| Power connection: | 110-240V 50-60 Hz. |
| Control voltage: | 24 VDC |
| Weight: Weight with stand: |
65 Kg. (143 lbs.) 135 Kg. (298 lbs.) |
| Plate size with ink cup: | 130 x 230mm max. |
| Plate size with inkwell: | 130 x 120mm max. |
| Plate Thickness: | 0.5 or 10mm |
| Ink cup sizes (diameter): 2 x 56mm (2.20") 1 x 70mm (2.75") 1 x 86mm (3.38") 1 x 120mm (4.72") |
Print sizes (diameter): 2 x 50mm (1.96") 1 x 60mm (2.36") 1 x 76mm (2.99") 110mm width x 90mm depth (4.33" x 3.54") |
