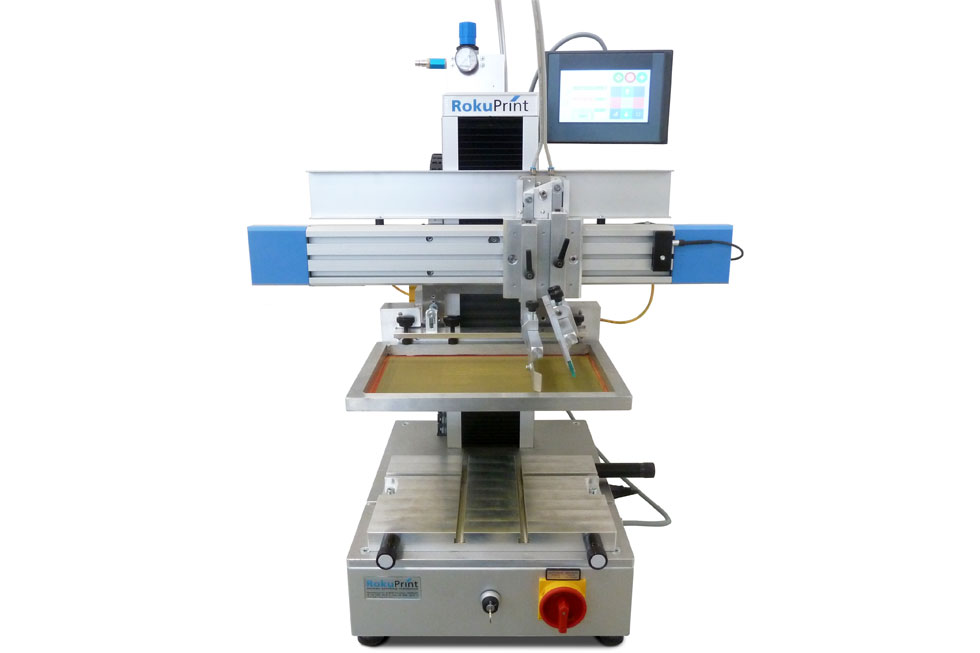

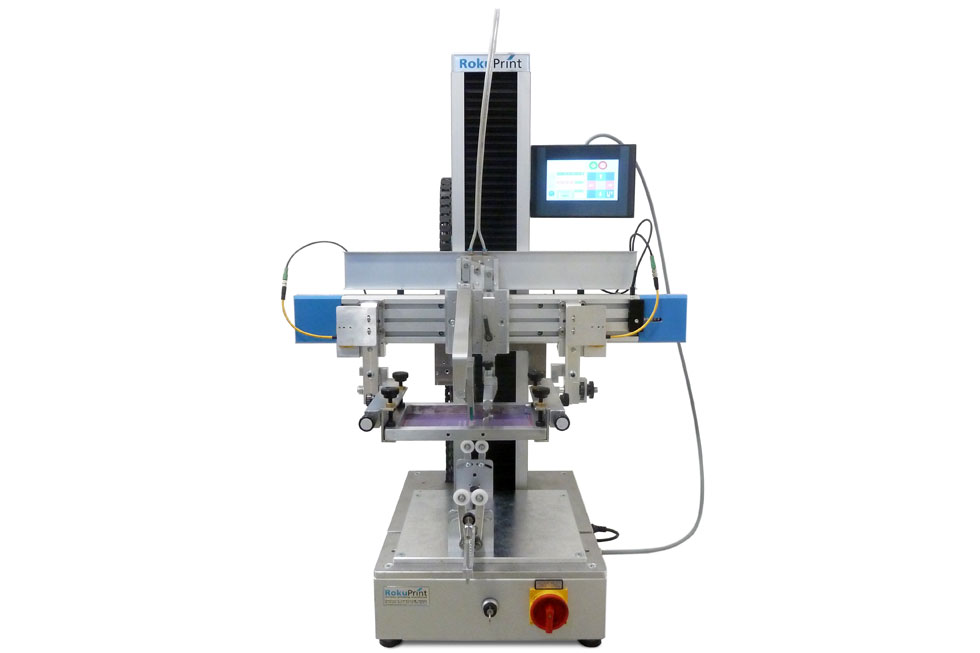

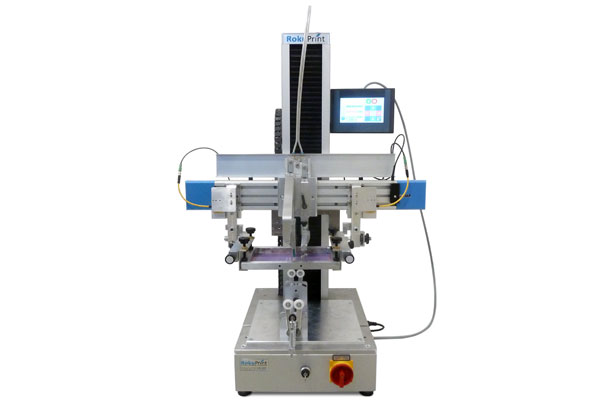

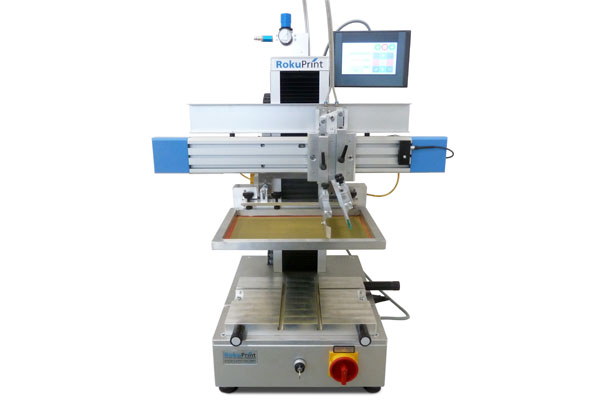

SD 06 Motor Driven Universal Screen Printing Machine
Precision German built small-format universal screen printing machine for flat objects (300 x 200mm) and round objects (120 x 220mm).
Machine Type: Semi-Automatic Screen Printing Press
Manufacturer: RokuPrint
Origin: Made in Germany

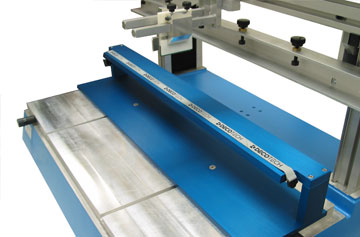

New for 2023 is the RokuPrint model SD 06 (replaces the SD 05) which is a precision German built small format universal screen printing machine that is DC motor driven and the SD 06 screen printer provides extremely accurate and precise printing results. The SD 06 screen printing machine can make lanyard printing made easy. The SD 06 screen printing press is perfectly suited for printing onto both flat and round industrial products. The SD 06 can be outfitted with a vacuum table for screen printing onto flat plastic or paper sheets or it can be outfitted with a rotary attachment to screen print onto round or curved objects such as pens, pencils, lighters, lighters, coffee mugs, aluminum water bottles, oil filters and much more. The RokuPrint SD 06 screen printing machine is outfitted with vertical screen lift that keeps the ink always in the print zone for trouble-free production and minimal downtime. The squeegee and flood bar are both quick change and require no tools and they can be remounted in the same precise location with a positive stop mechanism included. To find out more, call the experts at (714) 639-DECO.
ADVANTAGES
- Latest technology for optimal printing results and consistent quality
- Universally useable for flat or rotary printing (depending on configuration)
- Print and flood speed can be adjusted separately
- Precise and low maintenance by using proprietary guide elements
- Easy operation and quick set-up of new programs by teach-in-mode or direct entry
- Short set-up time due to memory function (105 individual programs)
- Adjustment of screen off-contact distance in semi-automatic operation
- Quick and easy cleaning
- High printing performance and speed
- Space-saving and portable due to compact design
NEW FUNCTIONS

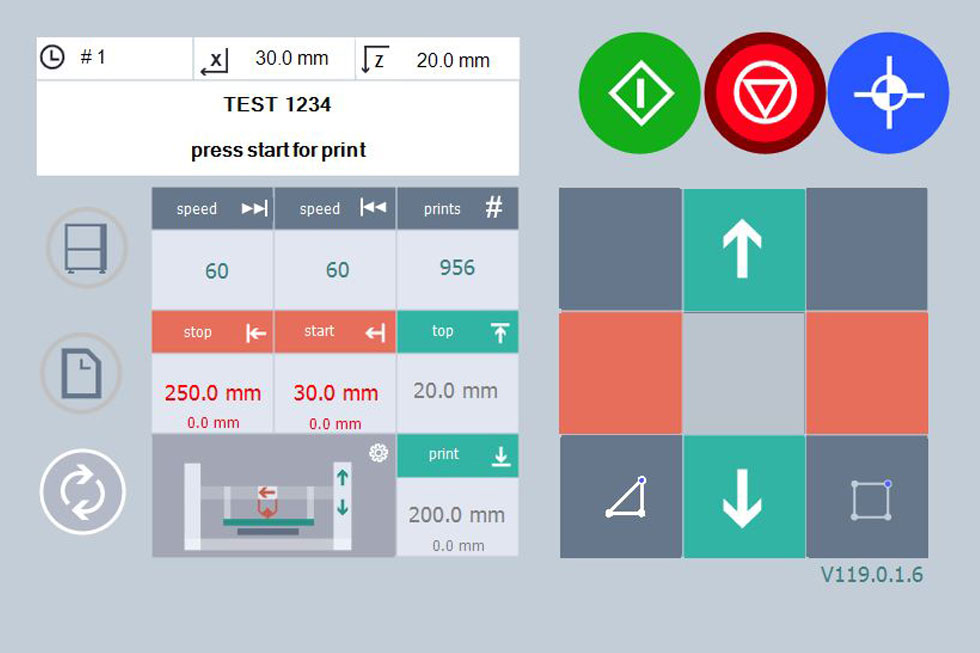

- Position display of X- and Z-axis
- Visualization of all program parameters
- Expanded memory (105 individual programs)
- Quick position correction (direct value entry)
- Password protected screen lock
- Many other special functions
SPECIFICATIONS
| Technical Data | SD 06 |
|---|---|
| Drive System: | Controlled DC Motors |
| Control System: | Display controller 7" LED |
| Display & Color Resolution: | 800 x 480 (WGVA) |
| Print Speed: | up to 1,800 pph |
| Print Head: | Pneumatic |
| Print size flat (L x W): | 300 x 200mm (11.8" x 7.9") Can be expanded with special order. |
| Print size round (D x H): | 120 x 220mm height (4.72" x 8.6") Max diam of part for 360° print is approx. 40mm (1.57”) |
| Screen frame: | Aluminum frames recommended, profile 25 x 25mm (.75" square) |
| Max. screen size (L x W): | 600 x 380mm (23.6" x 14.96") |
| Voltage: | 100-240V 50/60Hz. |
| Weight: | 60 Kg. (132 lbs.) |
| Dimensions: | 820 x 600 x 920mm (32.3" x 23.6" x 36.2") |
