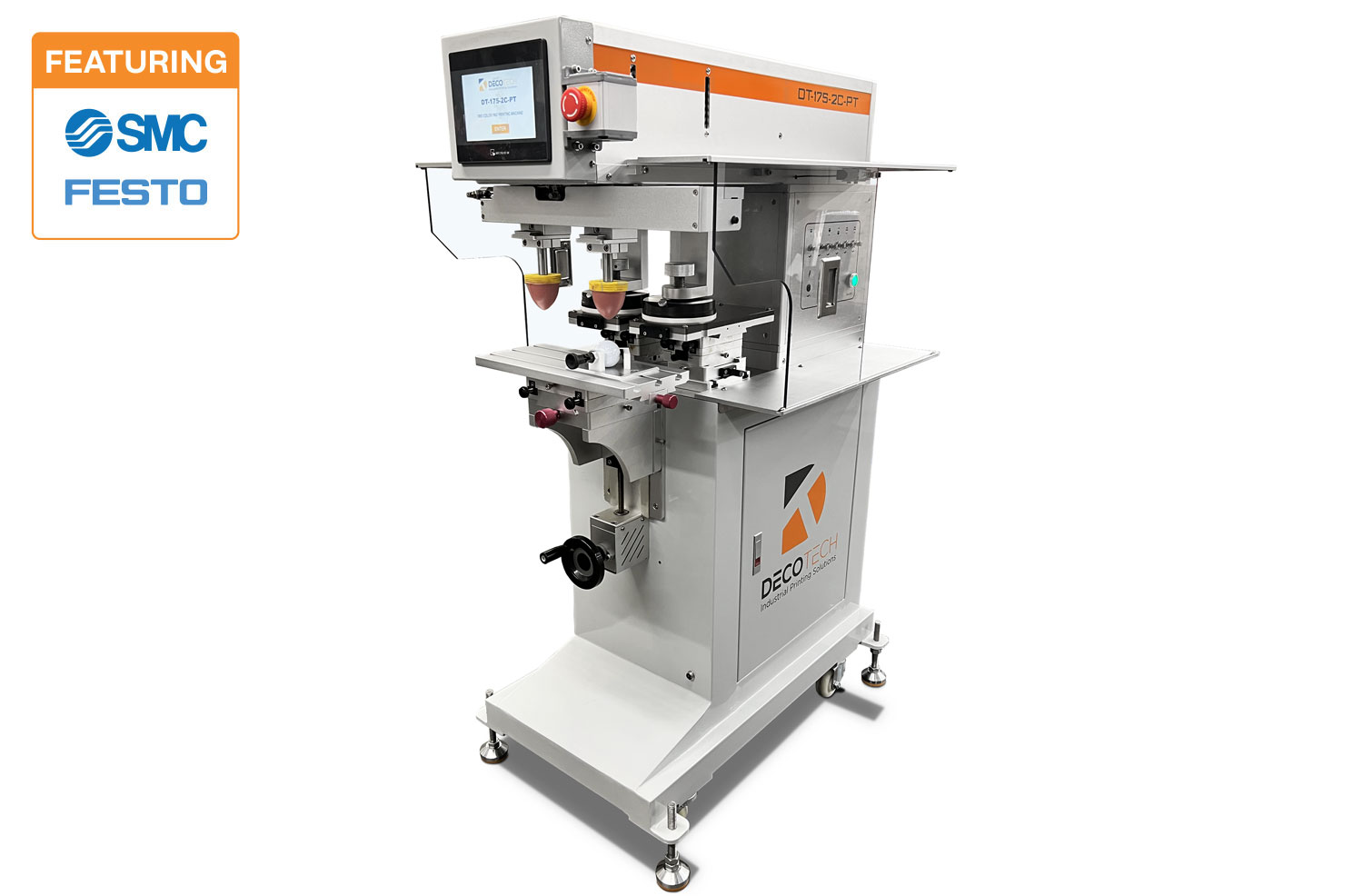

DT-175-2C Two Color Pad Printing Machine
Two color pad printing machine with two 120mm closed ink cups.
The DT-175-2C pad printing machine is a mid-sized and economical two color pad printing machine that is both user-friendly and quick to setup. It features a Mitsubishi PLC controller and touch screen interface and the pad stroke lengths are entered and controlled from the touch screen. The DT-125-2C can be outfitted with either a two color Part Shuttle (PS) or a two color Pad Transport (PT) device. The DT-175-2C pad printer comes with a solid built welded steel machine base and it has adjustable floor levelers and a height adjustable work table. Inside the machine base you have room to store your pad printing supply items like; inks, thinners, ink cups, mixing cups, stir sticks, etc. This DT-175-2C is equipped with two ink cups (see specs for sizes) and two (2) X/Y/R adjustable cliché holders for precise alignment of your artwork. The clichés can be; photo polymer, thin steel (0.5mm), thick steel (10mm) or laser etched varieties and DECO TECH provides a full array of consumable supplies, technical support & product training for our DT SERIES of pad printing machinery. This DECO TECH pad printing machine is backed with a one year warranty against defects in manufacturing.
Call the experts at (714) 639-DECO to find out more.
FEATURES
- PLC Controlled with Touch Screen
- Two Position Festo brand Part Shuttle (PS) or Pad Transport (PT)
- Festo Pneumatic Cylinders and SMC Pneumatic Valves throughout
- Heavy-Duty Steel Machine Base with Storage Cabinet for Supplies
- Height Adjustable Worktable with X/Y and Skew Adjustment
- T-Slot Table for Quick Mounting of Tooling
- Print Stroke Lengths are Adjustable from the Touch Screen (pad to part and pad to plate)
- E-Stop Safety Circuit and OSHA Approved Safety Guarding
- Complies with CE Safety Standards
- Comes with Foot Switch as Standard
- Comes with Tool Set and Operators Manual
Specifications
| Technical Data | DT-175-2C |
|---|---|
| Printing Capacity: | up to 1,620 pph (1 color) up to 1,200 pph (2 color) |
| Drive: | Mitsubishi PLC with touch screen |
| Printing Force: | 1,870 N |
| Air supply | 5-6 bars (72-87 psi) |
| Air consumption: | 4-6 kg/cm² |
| Power connection: | 110V/ 220V 50/ 60 Hz |
| Control voltage: | 24 VDC |
| Weight (Net/ Gross): | 130 kg (287 lbs) - 190 kg (419 lbs) |
| Plate size with ink cup: | 130 x 270mm |
| Vertical pad stroke: | 80mm (3.14") |
| Horizontal pad stroke: | 175mm (6.88") |
| Plate Thickness: | 0.5 or 10mm |
| Ink cup size (ID): 120mm (4.72") |
Print sizes (diameter): 110mm (4.33") |
