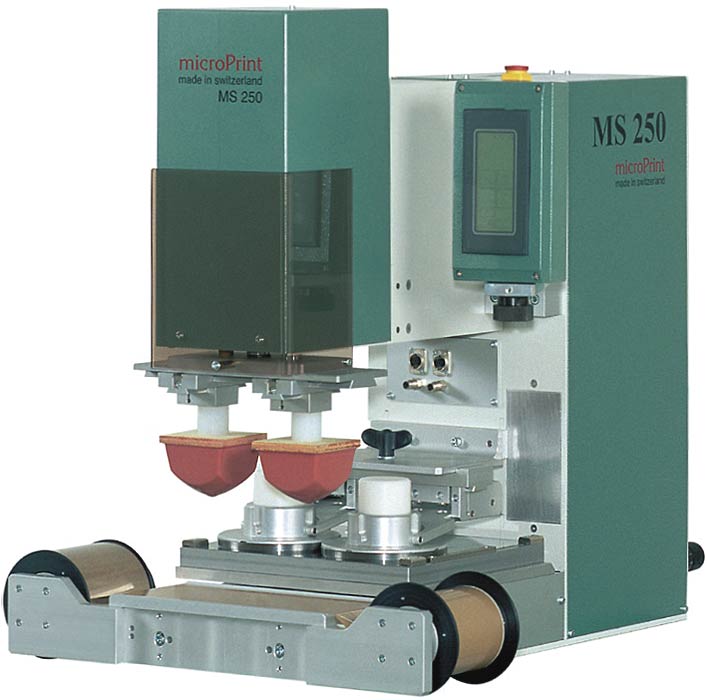

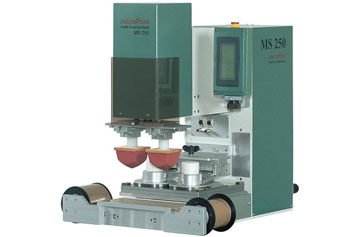

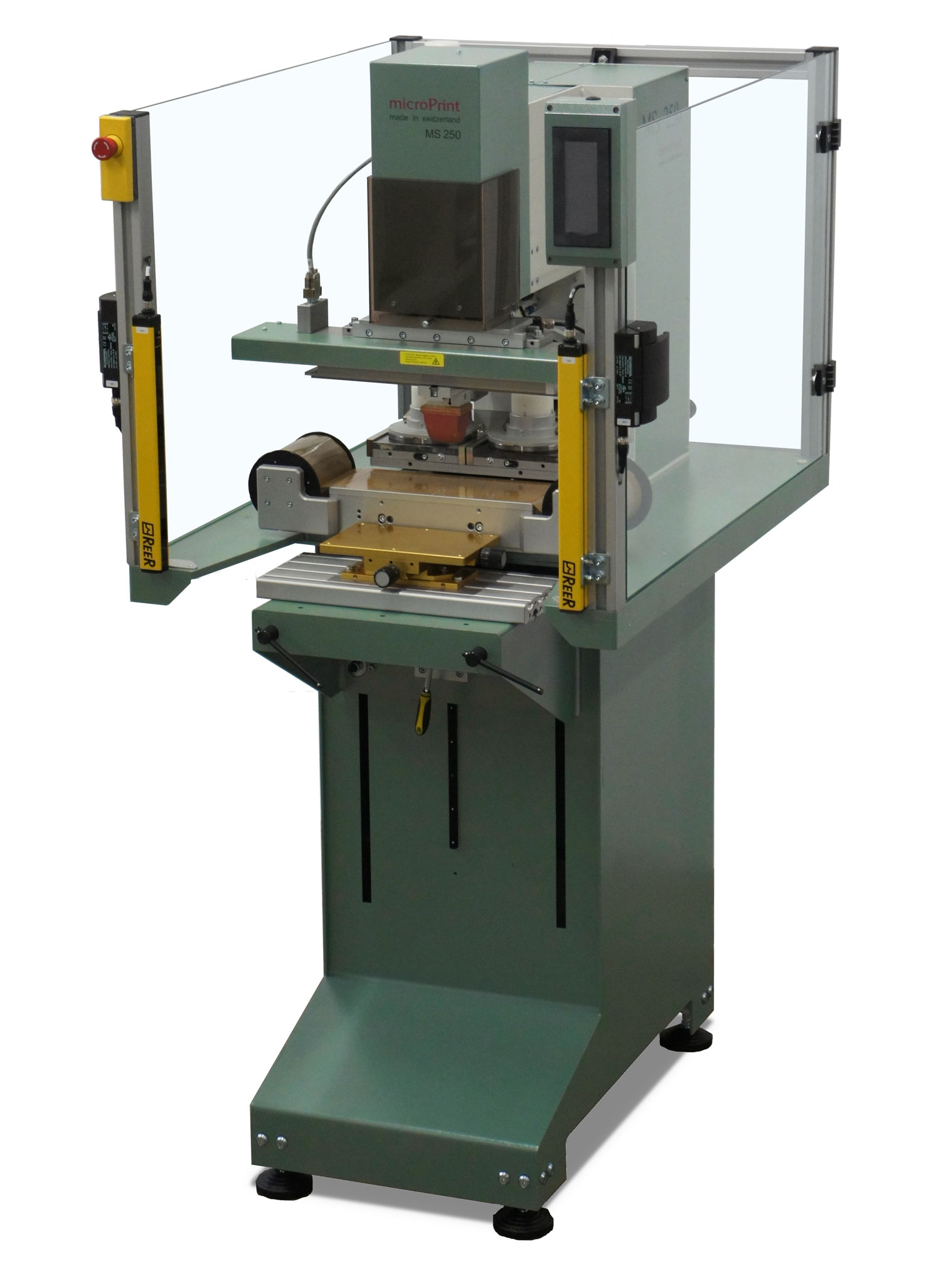

MS-250 Pad Printing Machine
Machine Type: Multi Color Pad Printing Machine
Manufacturer: microPrint
Origin: Made in Switzerland
The MS-250 pad printing press from microPrint of Switzerland is designed to be a robust and speedy single or multi-color pad printing machine. For 2 color pad printing applications it can be set-up with either a two-position part shuttle or a 2 position pad shuttle with two 86mm closed cups or two 120mm closed ink cups.

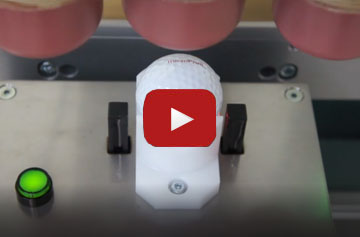

The microPrint MS-250 pad transfer printer can also be configured with up to 4 sealed ink cups at 56 mm (2.2") diameter. The modular design allows you to use many different ink cup sizes in a number of combinations (see specs for details). With a 4 color ink cup set-up, the model MS-250 is perfectly matched with our programmable servo-driven linear indexing part shuttle, making the MS-250 a perfect solution for multi-color golf ball printing. This solid built and compact pad printer is ideal for printing many injection molded parts, such as medical devices, advertising specialty items & many other industrial goods.
FEATURES
- Automatic pad cleaning without production loss
- Fast cliché plate changeover without tools
- VISCOMATIC™ ink viscosity control system

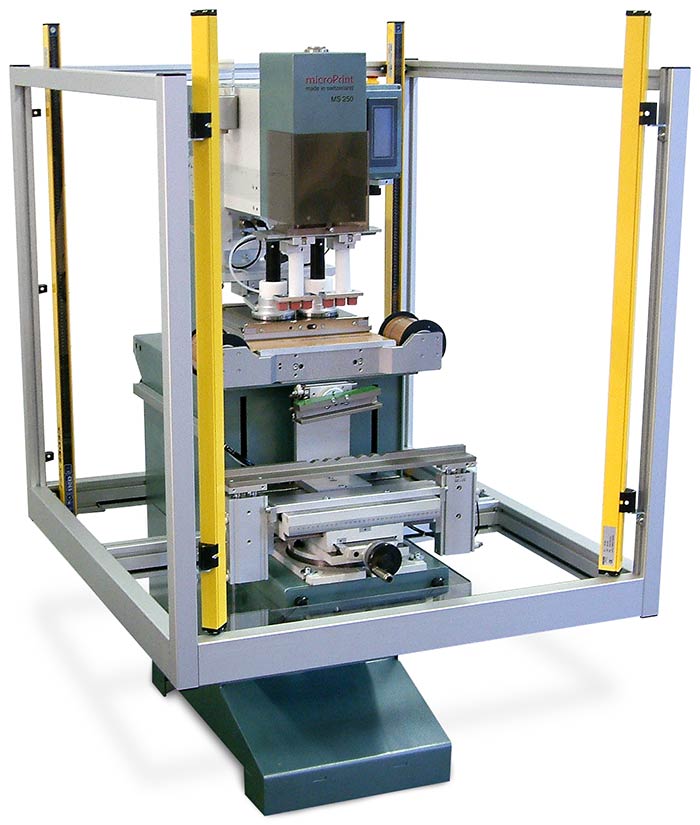

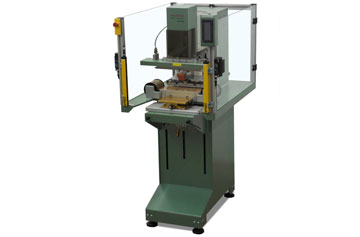

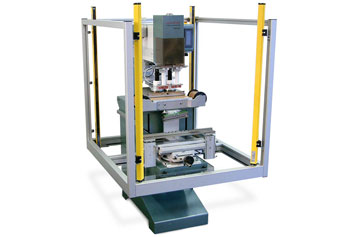

- Easy integration into automated systems
- Simple to use graphical operator interface
- X/Y/R cliché holder adjustment
microPrint rewrote the book on pad printing technology with their many innovations, and today microPrint is a Worldwide leader in providing innovative solutions for the pad printing machine customer.
SPECIFICATIONS
| Technical Data | MS-250 |
|---|---|
| Printing Capacity: | up to 1,800 pph |
| Drive: | Pneumatic |
| Printing Force: | max. 710 N |
| Air Supply: | 5-6 bar (87 psi) |
| Air Consumption: | 2.5 cfm @ 80 psi |
| Control System: | PLC 24V |
| Power Connection: | 110-240V 50-60 Hz. |
| Control Voltage: | 24 VDC |
| Weight: Weight with Stand: |
68 Kg. (150 lbs.) 158 Kg. (348 lbs.) |
| Plate Size with Ink Cup: | 260 x 250mm max. |
| Plate Size with Inkwell: | 250 x 120mm max. |
| Plate Thickness: | 0.5 or 10mm |
| Ink Cup Sizes (Diameter): 4 x 56mm (2.20") 3 x 70mm (2.75") 2 x 86mm (3.38") 2 x 120mm (4.72") |
Print Sizes (Diameter): 4 x 50mm (1.96") 3 x 60mm (2.36") 2 x 76mm (2.99") 2 x 110mm (4.33") |
