ML-350 MOTOR DRIVEN PAD PRINTING MACHINE
Machine Type: Motor Driven Multi Color Pad Printing Machine
Manufacturer: microPrint
Origin: Made in Switzerland

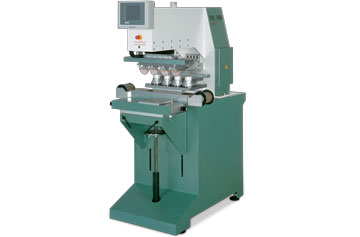

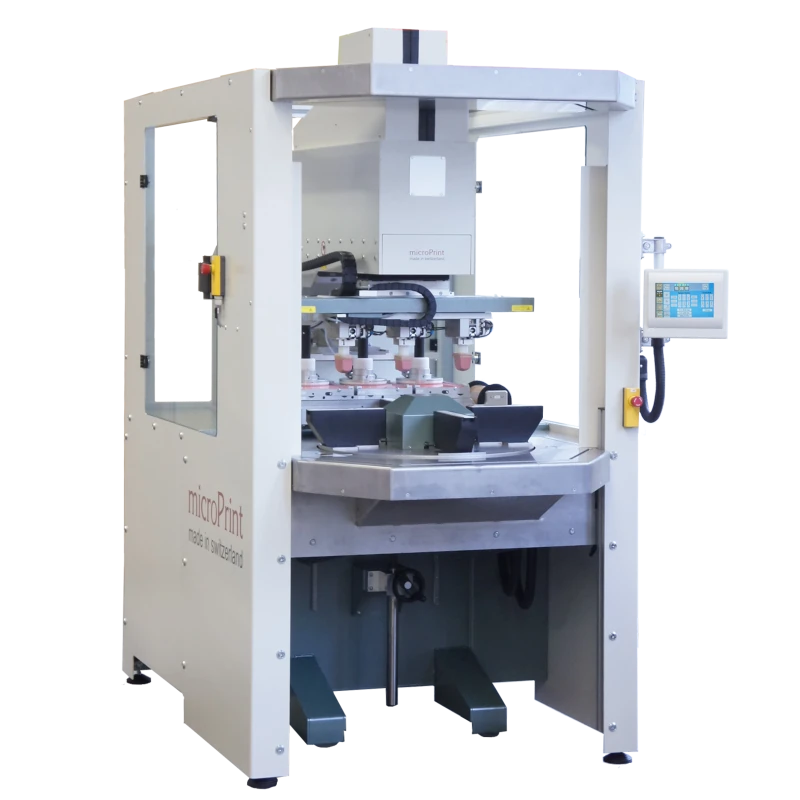

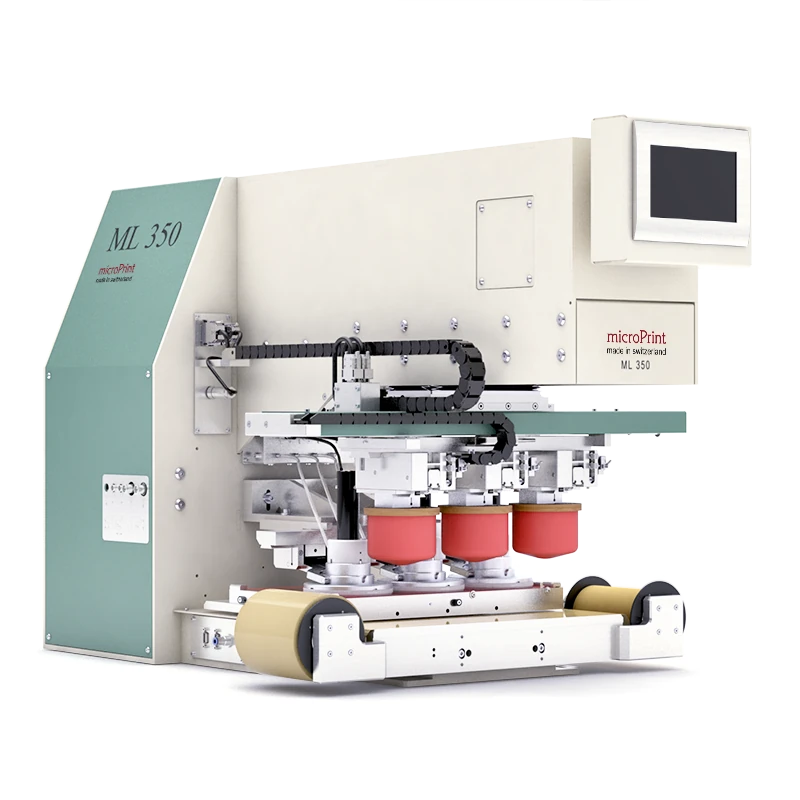

The ML-350 linear motor driven pad printer from microPrint is a universal single or multi-color modular pad printing machine that features a hybrid control drive system with both linear motor control and pneumatic control. The ML-350E is linear motor driven in the horizontal axis and servo motor driven for the vertical axis (print stroke). The ML-350 and ML-350E can be set up with several closed ink cups or even with an open inkwell. Furthermore, you can also outfit this pad printing machine with a linear cup slide for pad printing long objects such as a catheter tube.
The ML-350 closed ink cup pad printing machines are Precision Swiss built and they can be outfitted with the following ink cup sizes:
- 6 color closed ink cup x 56 mm diameter
- 5 color closed ink cup x 70 mm diameter
- 4 color closed ink cup x 86 mm diameter
- 3 color closed ink cup x 120 mm diameter
- 2 or 1 color closed ink cup x 120 mm diameter

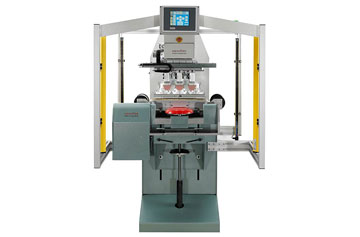

The ML-350 and ML-350E pad print machinery come equipped with fully integrated automatic tape pad cleaning system and Viscomatic ink viscosity control system (both are optional). The ML-350 can also be set-up with a multi axis robot, Servo-driven linear part shuttle or a Servo driven Carousel, which is an oval racetrack style multi-fixture part indexer. microPrint rewrote the book on pad printing equipment, and they are continually developing new innovations to allow the pad printing process to perform better in the real world. Call the experts at (714) 639-DECO to find out more.
FEATURES
- Fast Job changeovers with all parameters stored in the PLC
- Lightning-fast production speeds with linear and servo motor controls
- Crafted with precision and care in Switzerland, ensuring the highest quality of workmanship
- Automatic Pad Cleaning & Ink Viscosity controls for easy maintenance and improved performance
- Intuitive touchscreen interface for easy navigation and control
- Laser cut & welded construction for superior strength and durability
- Interfaced into an automated system quickly with built in RS-232 port
- World class components to ensure maximum reliability and performance
SPECIFICATIONS
| Technical Data | ML-350 | ML-350E |
|---|---|---|
| Printing Capacity: | up to 1,450 pph | up to 1,650 pph |
| Drive: | Linear motor & Pneumatic | Linear motor & Servo Motor |
| Printing Force: | 1,100 N Max | 3,000 N Max |
| Air supply: | 5-6 bar (87 psi) | 5-6 bar (87 psi) |
| Air Consumption: | 3 cfm @ 80 psi | 1 cfm @ 80 psi |
| Control System: | PLC 24V | PLC 24V |
| Power Connection: | 230V 3 phase 50-60Hz | 230V 3 phase 50-60Hz |
| Control Voltage: | 24 VDC | 24 VDC |
| Weight Print Head: Weight with Safety Cell: |
170 Kg. (375 lbs.) 610 Kg. (1,345 lbs.) |
190 Kg. (420 lbs.) 640 Kg. (1,411 lbs.) |
| Plate Size with Ink Cup: | 420 x 250mm max. | 420 x 250mm max. |
| Plate Size with Inkwell: | 350 x 120mm max. | 350 x 120mm max. |
| Plate Thickness: | 0.5 or 10mm | 0.5 or 10mm |
| Ink Cup Sizes (Diameter): 6 x 56mm (2.20") 5 x 70mm (2.75") 4 x 86mm (3.38") 3 x 120mm (4.72") |
Print Sizes (Diameter): 6 x 50mm (1.96") 5 x 60mm (2.36") 4 x 76mm (2.99") 3 x 110mm (4.33") |
Print Sizes (Diameter): 6 x 50mm (1.96") 5 x 60mm (2.36") 4 x 76mm (2.99") 3 x 110mm (4.33") |
