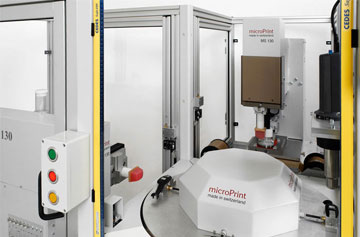

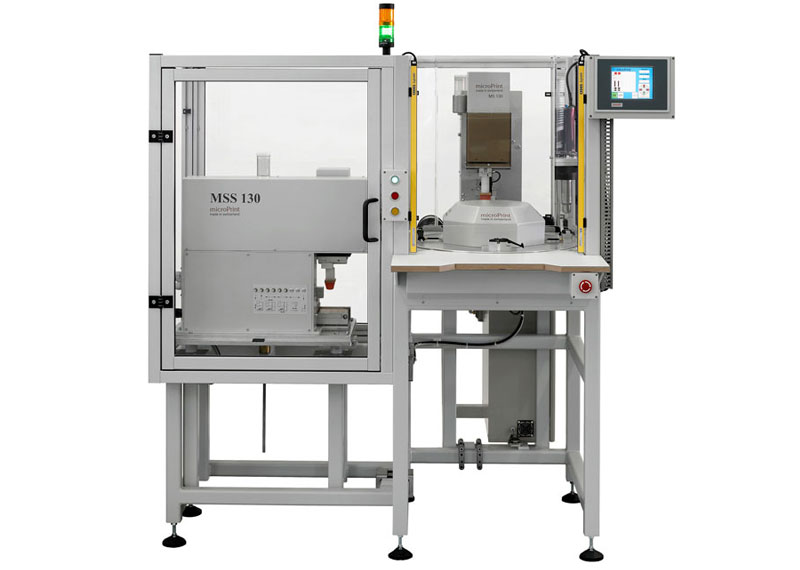

At the heart of this microPrint automation is a precision-built dual-axis pad printing solution designed for the high-speed, multi-surface decoration of BMW automotive turn signal arms. Engineered in Switzerland, this system features both the MSS-130 swivel pad printer and the MS-130 vertical pad printer mounted on a Weiss-brand 4-station rotary indexing table for synchronized, repeatable part handling.

This setup enables simultaneous decoration on both the top and side surfaces of each molded plastic part in a single cycle—ensuring precise registration, reduced cycle time, and operator-free production.

This system is packed with production-ready technologies for streamlined operation:

• MSS-130: A swivel pad printer with programmable 90° pad rotation for horizontal-axis printing
• MS-130: A vertical pad printer for top-down decoration
• 4-Station Weiss Rotary Indexer: Provides high-speed, repeatable part positioning
• Light Curtain Guarding: Enables automatic cycle start without the need for a foot pedal
• Touchscreen HMI with Icon-Based UI: User-friendly and language-independent
• Beckhoff PLC with PROFIBUS: Seamless integration and reliable machine control

This system is packed with production-ready technologies for streamlined operation:

• MSS-130: A swivel pad printer with programmable 90° pad rotation for horizontal-axis printing
• MS-130: A vertical pad printer for top-down decoration
• 4-Station Weiss Rotary Indexer: Provides high-speed, repeatable part positioning
• Light Curtain Guarding: Enables automatic cycle start without the need for a foot pedal
• Touchscreen HMI with Icon-Based UI: User-friendly and language-independent
• Beckhoff PLC with PROFIBUS: Seamless integration and reliable machine control

Each of the two print heads is equipped with:

• Automatic Tape Pad Cleaning Units – Maintain clean transfer pads without manual interruption
• Viscomatic Ink Viscosity Control Systems – Ensure consistent ink flow and print quality across long production runs

Together, these systems reduce labor involvement while improving production speed, consistency, and uptime.

The microPrint automation includes XYR pin-registered cliché holders that lock in the print position—set it once and never adjust again. The entire unit is fully enclosed with safety interlock doors and e-stop functionality, making it a smart choice for Tier 1 automotive suppliers and medical/industrial decorators.

This specific automation was developed for a BMW application where white pad printing graphics are applied to both the top and side of a contoured turn signal stalk. The swivel head executes the side print using a horizontal pad orientation, while the vertical MS-130 head prints directly downward—all in a single indexed motion cycle.

Contact Deco Tech today to learn how this microPrint dual-axis pad printing automation can streamline your production and deliver multi-side printing precision for complex parts like automotive controls, medical devices, or consumer goods. We offer full consultation, integration support, and technical service across North America.

📞 Call us at (714) 639-DECO or 📩 email us at sales@decotechgroup.com
