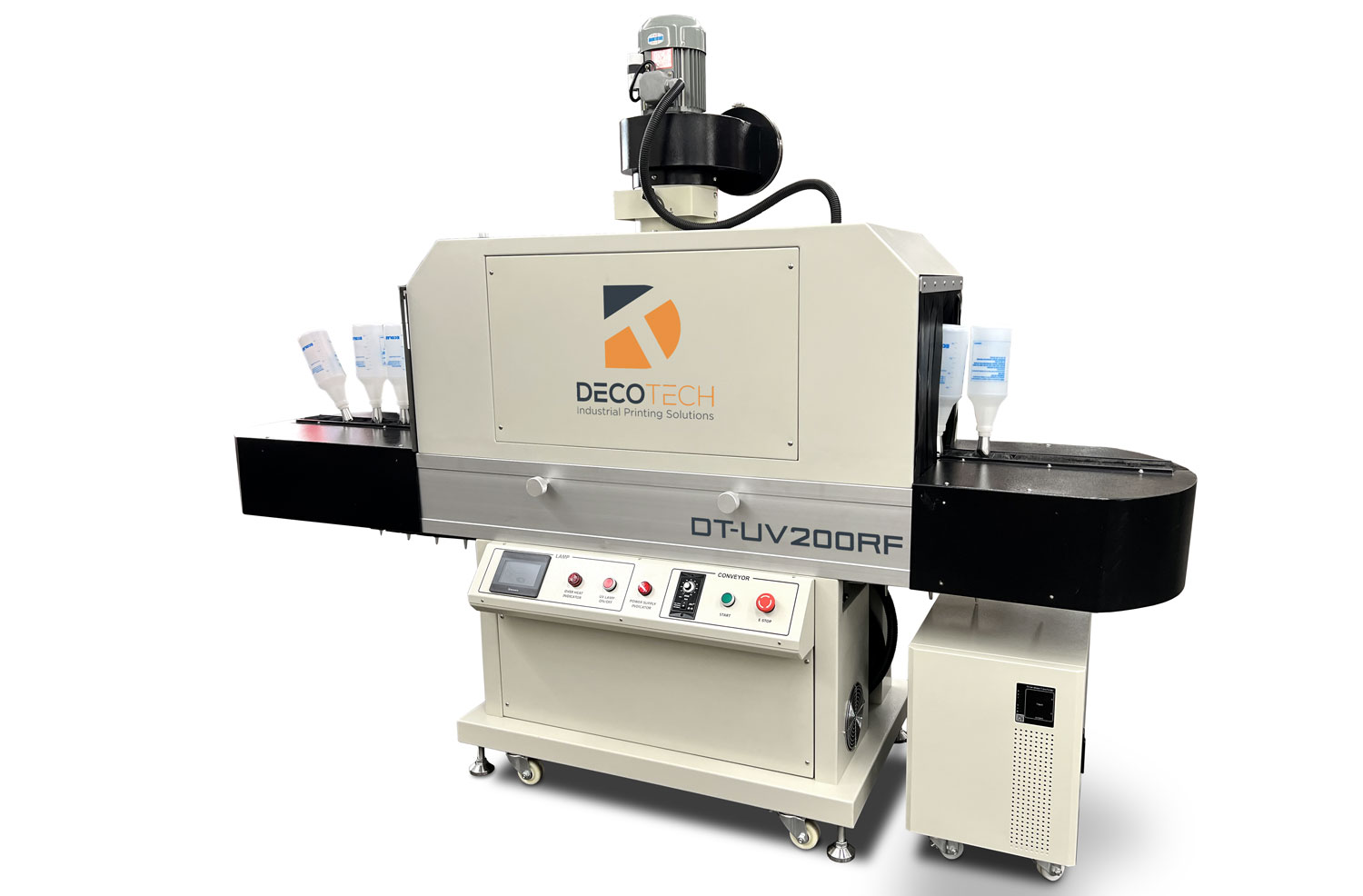

DT-UV200RF Round/Flat UV Curing Conveyor
Versatile UV Curing Unit for the ultimate in product flexibility.
Machine Type: UV Drying Conveyor with Stainless Steel Belt and 5KW power output.
Manufacturer: Deco Tech
Origin: Built in China with World-Class Components

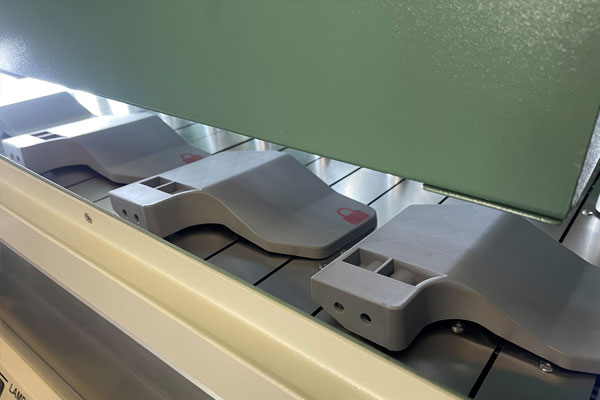

The DT-UV200RF UV curing conveyor is designed for efficient curing of UV inks, UV adhesives, and UV clear coatings on both flat products and round containers. The conveyor is controlled via PLC and touch screen, and this industrial UV dryer offers adjustable UV lamp power output of 3KW, 4KW, or 5KW and is outfitted with a variable-speed controller (0 to 100 FPM) for precise control over curing time and curing intensity.

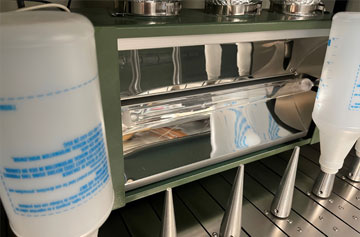

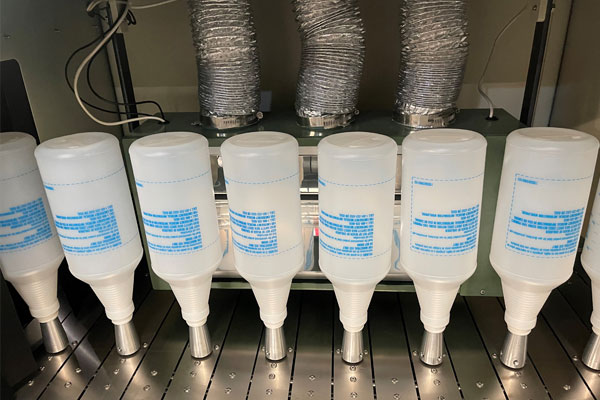

For round objects, the DT-UV200RF features a rack-and-gear system beneath the stainless steel conveyor belt, which automatically rotates cylindrical products, such as plastic bottles, jars, and other containers/ objects, ensuring full 360-degree UV curing. Additionally, custom tooling can be designed to meet specific customer requirements for handling various shapes and sizes of round products.
For safety, the UV conveyor system includes adjustable infeed doors to minimize UV light leakage and dual slit nylon drapes on the outfeed side to prevent light from escaping while allowing products to pass through smoothly.
Operator Safety Notice: We recommend wearing UV protective eyewear while operating the UV curing conveyor, as some UV light may be visible.
KEY FEATURES
- UV Curing for Flat & Round Products – Suitable for screen printing, pad printing, UV adhesives, and UV clear coatings
- 360-Degree Curing for Round Parts – Rack-and-gear system rotates bottles, jars, and containers for even UV exposure
- Customizable Tooling – Tailored solutions for various round object sizes and shapes

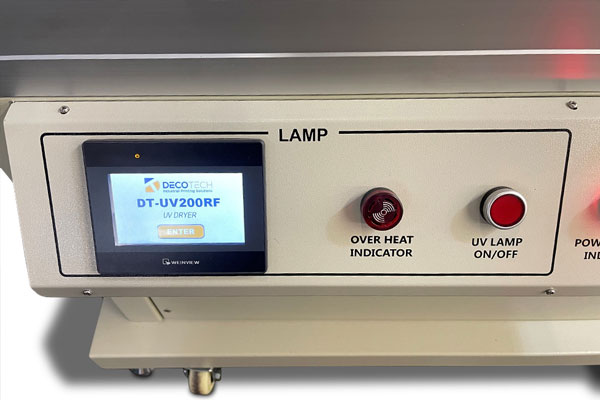

- PLC & Touchscreen Controls – Easy operation and precise UV exposure adjustment

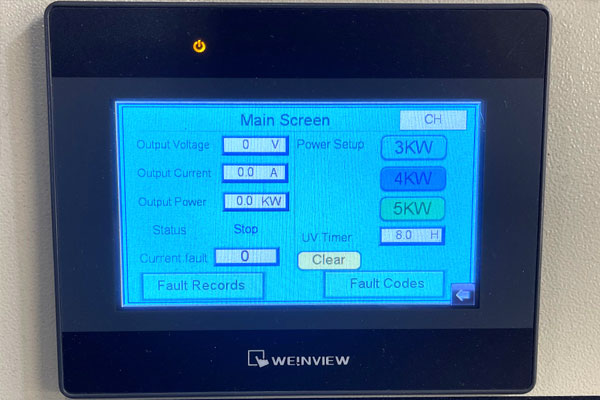

- Adjustable UV Lamp Power – Choose from 3KW, 4KW, or 5KW UV output

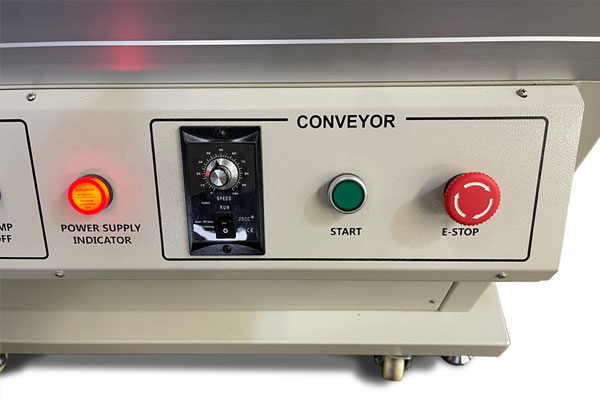

- Variable-Speed Conveyor – Set curing speed from 0 to 100 FPM
- Enhanced Safety Design – Adjustable infeed doors and dual nylon drapes to prevent UV light leakage
- Heavy-Duty Industrial Build – Reliable UV curing system for high-production environments
- Stainless Steel Belt – For long lasting conveyor performance and heat stability.
SPECIFICATIONS
| Technical Data | DT-UV200RF |
|---|---|
| Drive system: | Variable speed electric motor |
| Max. flat product size: | 400mm width (Usable curing area: 380mm), Max part height: 200mm |
| Voltage: | 380V 50/60 Hz, 30 Amps (220V 3-phase transformer available) |
| UV Lamp: | Single 5KW PRIMARC UV lamp |
| Conveyor Belt Length: | 2,100mm (82.7”) |
| Machine Dimensions (LxWxH): | 2,300 x 700 x 1,780mm (90.55” x 27.55” x 70”) |
| Machine Crated Dimensions (LxWxH): | 2,470 x 790 x 1,880mm (97.3” x 31.1” x 74”) |
| Net Weight: | 335 KG (737 LBS) |
| Gross Weight with Crate: | 435 KG (957 LBS) |
