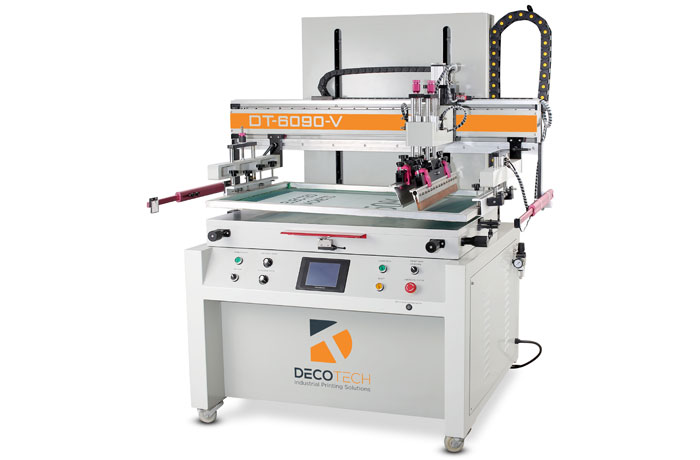

DT-6090 Flatbed Screen Printing Machine
Large format screen print machine to screen print on flat sheets up to 600 x 900mm (23.62" x 35.43")
Machine Type: Large Format Flatbed Screen Printing Press

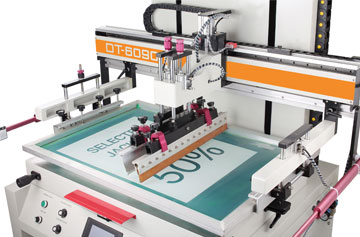

Our newly updated model DT-6090 screen printing press feature a dual axis (vertical & horizontal strokes) DC motor driven system that lifts the screen frame straight-up vertically keeping the ink in the "print zone" and retaining the ink in the print zone was always a problem with clam-shell style screen printing machines. Furthermore our flat screen lifting method allows the operator to easily load and unload graphic sheets or industrial parts during production runs and also provides the added advantage of being able to easily view and inspect the printed sheet. Our DT-6090 machines are available with or without a vacuum table (T = T-Slot & V = Vacuum). The DT-6090 Series are well suited for screen printing small to mid-sized graphic panels, signage, membrane switches and overlays. It is also good for printing on industrial flat goods. We also have other sizes available in the DT-3050, DT-4060 and DT-5070 models.
FEATURES
- Dual Axis DC Motor driven

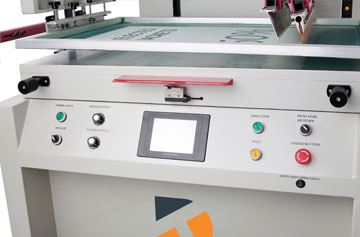

- Mitsubishi PLC controlled with touchscreen (new update for 2022)
- Integrated safety bar with stroke interruption
- Motor driven vertical & horizontal strokes (set mechanically)

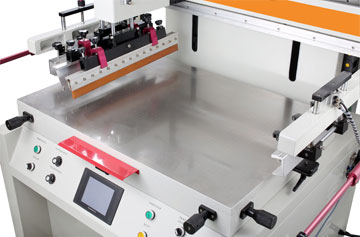

- X/Y/R positioning table with or without vacuum table
- Linear ball bearings on hardened shafts
- Squeegee angle and calibrated height adjustment
- 600 x 900mm (23.62" x 35.43") print area
- Regulated squeegee pressure with pressure gauge
- Floor levelers & casters
- Foot switch controlled
SPECIFICATIONS
| Technical Data | DT-6090-T/V |
|---|---|
| Printing Capacity: | Up to 800 cycles/hr |
| Drive: | Dual Axis AC Motor |
| Maximum Print Area (L x W): | 600 x 900mm (23.62" x 35.43") |
| Max. screen frame size (L x W): | 800 x 1,220mm (31.49" x 48") |
| Vacuum table size (L x W): | 600 x 900mm (23.62" x 35.43") |
| Work table size (L x W): | 700 x 1,000mm (27.55" x 39.37") |
| Screen Frame Thickness: | 20-50mm (.75" to 2") |
| Max Print Height: | 100mm (3.93") |
| Screen Adjustment: | X,Y ± 10mm / θ 1.8° |
| Print stroke: | 900mm (35.43") |
| Vertical Screen Stroke: | 250mm (9.84") |
| Air Pressure Input: | 5-7 bar (72-100 psi) |
| Electrical Source: | 380/480V 3 Phase 50/60Hz |
| Weight: | 660 kg (1,455 lbs) |
| Dimensions: | 1,350 x 1,350 x 1,700mm (53.15" x 53.15" x 66.92") |
