Deco Tech

The Deco Tech model DT-2030 is a small tabletop screen printing press that features a smooth operating pneumatic drive system for both the vertical and horizontal strokes.  The screen frame is lifted up & down vertically, which keeps the screen print ink in the "print zone", making this a much better design than a clam shell style screen printing press, where the ink constantly runs to the back of the screen frame.  Furthermore, this flat vertical screen lifting method allows the operator to better view the parts being loaded and unloaded for faster visual inspection.

This small tabletop screen print press is well suited for printing on injection molded parts & Advertising Specialty Items (ASI).  This machine is used to screen print on parts such as cigarette lighters, ice scrapers, flying discs (aka Frisbee®), first aid kit boxes, Lexan® polycarbonate countertop display boxes, plastic business cards holders, and much more. It is also perfectly suited for screen printing on industrial goods such as circular saw blades, stamped metal panels (such as 5U, Eurorack synthesizer faceplate panels and stomp boxes), formed metal chassis, and various exterior automotive components. We have sold several of these screen printing presses for use in ink and paint labs for color sample drawdowns.

The horizontal printing axis is controlled via a Festo brand rodless cylinder, and this DT-2030 screen printing press is easily adjustable with quick release stop guides for stroke length. This compact screen printing machine is equipped with a X/Y/R adjustable worktable and features an OSHA approved E-Stop safety bar located just in front of the work area.  The DT-2030 screen printing presses are available in the “T” version, with Tee slots for mounting an injection molded or stamped metal part, or in the “V” version, equipped with a vacuum table to hold down lightweight paper, plastic sheets, or card stock.

Features

• Festo brand pneumatics with shock absorbers

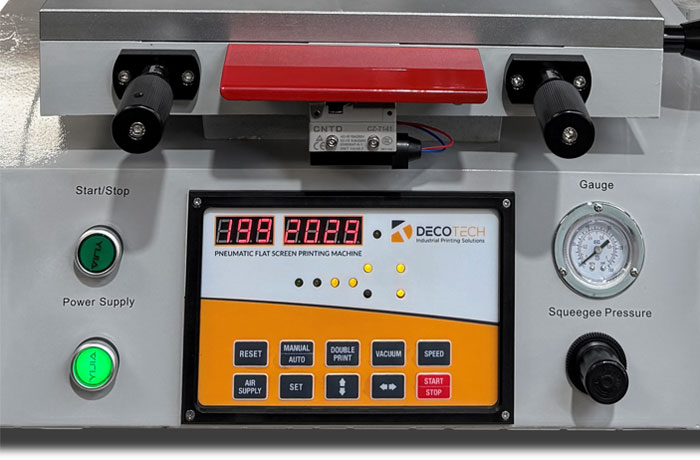

• Microprocessor controlled with membrane switch panel with LCD display
• Vertical print head lift with height adjustment
• Integrated E-stop safety bar
• X/Y/R positioning table withT-slot or vacuum table
• Linear ball bearings on hardened shafts
• Adjustable squeegee angle and height
• 200 x 235mm (7.87" x 9.25") print area
• Up to 200mm (7.87") long squeegee & flood bar set (smaller sizes available)
• Regulated squeegee pressure with pressure gauge
• Tabletop machine with adjustable levelers
• Foot switch controlled
