DT-075R Cylindrical Screen Printing Machine
Semi-automatic screen printer for round objects up to 75mm diameter.

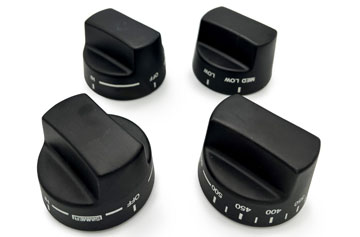

The DT-075R is primarily a semi-automatic bottle and container screen printer, but it is also capable of screen printing onto other cylindrical products such as Stove and BBQ knobs, blow molded bottles, cosmetic mascara tubes, perfume bottles, lipstick tubes, aluminum water bottles, drumsticks, glass pipettes, syringe barrels, etc.. The DT-075R features quick & simple tooling changeovers, precise mechanical registration & conveniently all controls are on the front panel, making the DT-075R the perfect all around universal screen printing machine for round products. The DT-075R can also be tooled up to print on small flat items such as injection molded parts, cosmetic jar lids, and similar. Call the experts at (714) 639-DECO to find out more.
Advantages
- Festo Pneumatic controlled with shock absorbers
- Mitsubishi PLC controlled with touchscreen (new update for 2022)
- Vertical part lift with height adjustment and angle adjustment
- Print stroke controlled with rodless cylinder
- X/Y/R/Z worktable for mounting round part tooling
- Linear ball bearings on hardened steel shafts
- Squeegee tilt, skew, and height adjustable
- Screen frame angle & tilt adjustable
- Synchronized bottle inflation system with regulator
- Regulated squeegee pressure with pressure gauge
- Floor levelers & casters
- Foot switch controlled
- Fully Guarded to OSHA standards
Specifications
| Technical Data | DT-075R |
|---|---|
| Drive System: | Pneumatic |
| Frame Up/Down Stroke: | 100mm (3.94") |
| Dimensions (L x W x H): | 830 x 750 x 1,270mm (32.68" x 29.53" x 50") * |
| Maximum Print Area Round: Maximum Print Area Oval: Maximum Print Area Flat: |
75mm (2.95") Ø 230mm (9.06") Arc Length 150 x 220mm (5.91" x 8.66") |
| Working Table Size: | 200 x 300mm (7.87" x 11.81") |
| Table Adjustment: | X,Y ± 15mm / θ 15 ° |
| Maximum Screen Frame Size: | 280 x 430mm (11.02" x 16.93") |
| Screen Frame Thickness: | 18 - 25mm (.71" - .98") |
| Squeegee Angle: | 0-15° |
| Printing Cycle Speed: | 1,980 cycles/hr |
| Squeegee Speed: | 33/min |
| Squeegee Pressure: | 2 - 4 Bar |
| Electric Source: | 110V/220V 50-60Hz 50W |
| Air Pressure Input: | 80 psi |
| Air Consumption: | 0.7 L/cycle |
| Machine Weight: | 135 kg (297.62 lbs) |
| Machine Weight (including crating): | 205 kg (451.95 lbs) |
| Crate Dimensions: | 980 x 870 x 1,410mm (38.58" x 34.25" x 55.51") |
