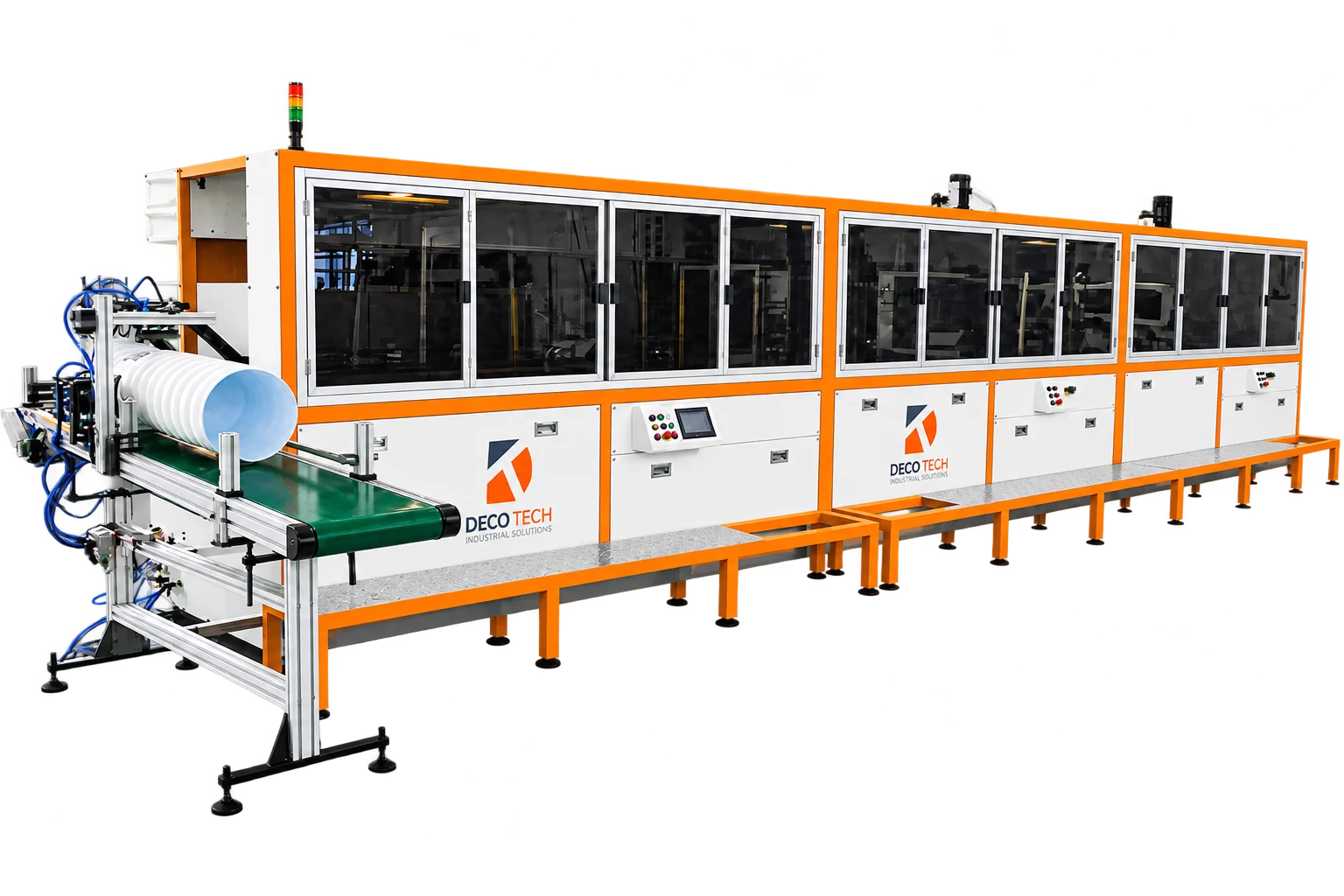

DT-1000-JUMBO Automatic Screen Printing Machine for Buckets

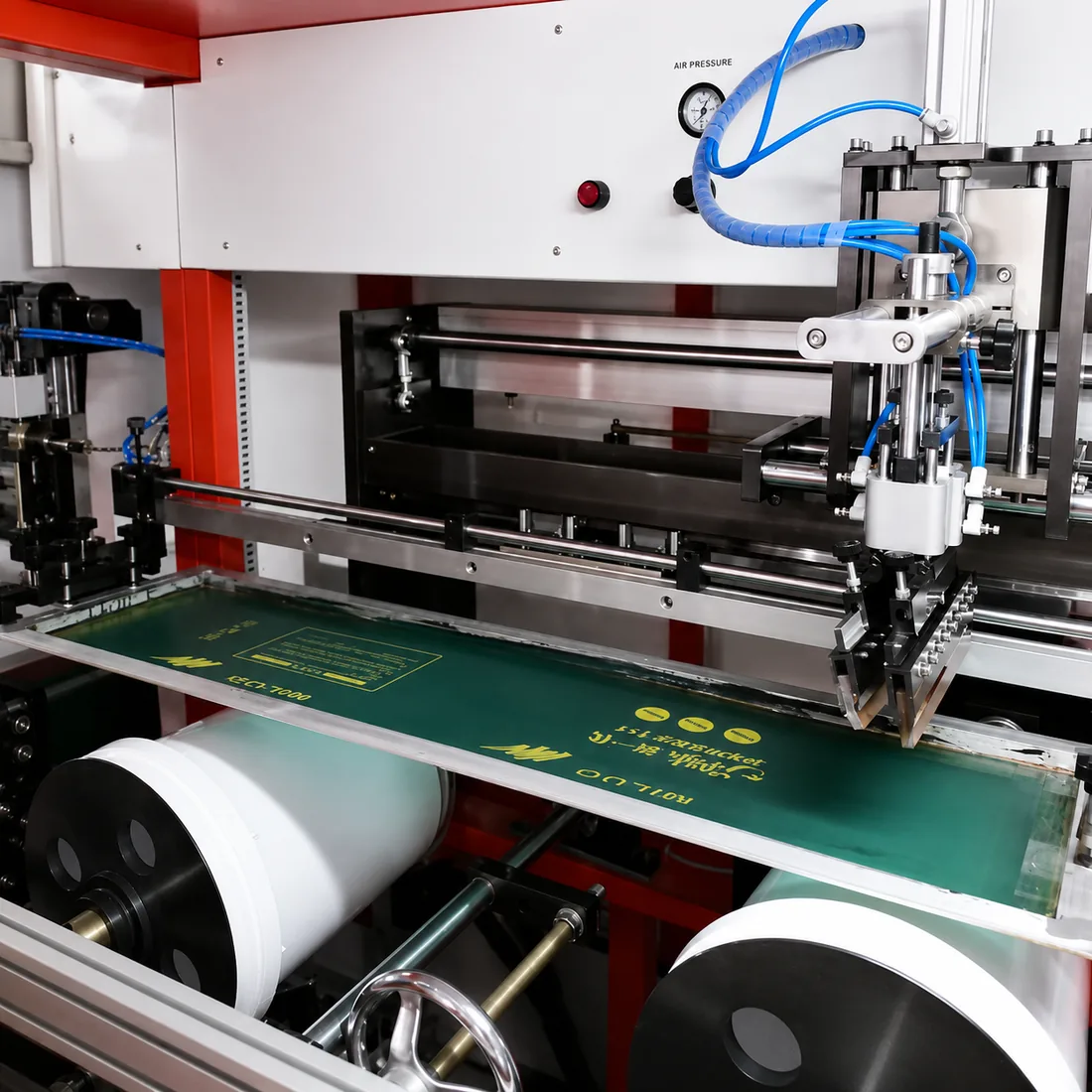

The DT-1000 is an advanced automatic screen printer specifically designed for printing on 5-gallon buckets. Engineered for high efficiency and precision, this machine combines cutting-edge technology with robust performance, making it ideal for large-scale industrial applications.
Overview of the DT-10000 Jumbo Screen Printing Automation
The Deco Tech DT-10000 jumbo screen printing automation is a state-of-the-art, fully automatic screen printing system engineered for high-precision printing on oversized cylindrical and irregularly shaped containers. It excels in industrial applications such as:
- Industrial drums and barrels
- Large beverage kegs and oversized containers
- Bulk storage containers made of plastic, glass, or metal
- Specialized automotive and aerospace components
- Extra-large thermos bottles and canisters
- 5 gallon water bottle containers
The DT-10000 features cutting-edge automation, precise mechanical registration, and advanced control systems, making it the ultimate choice for industrial-scale printing on large or uniquely shaped objects.
Equipped with a servo-driven printing system, Mitsubishi PLC controls with a user-friendly touchscreen interface, and fully automated tooling adjustments, the DT-10000 ensures consistent and efficient performance for the most demanding production requirements.
Its ergonomic design prioritizes operator safety and convenience, featuring OSHA-compliant guarding, automated setup options, and a compact footprint despite its large capacity. With its unmatched reliability and precision, the DT-10000 sets a new standard for jumbo-scale screen printing automation.
Key Features
- DC motor-driven system for precise control and efficiency
- Mitsubishi PLC control with an intuitive touchscreen interface
- Adjustable squeegee tilt, skew, and pressure
- Capable of handling large containers up to 350mm (13.7") in diameter
- Quick-change screen frames for versatility
- Linear ball bearings on hardened steel shafts for durability
- Automatic container positioning with X/Y/R adjustments
- OSHA-compliant guarding for operator safety
- High-speed printing with up to 1320 cycles per hour
- Floor levelers for easy installation
Specifications
| Technical Data | DT-10000-JUMBO (1 Color) | DT-10000-JUMBO (2 Color) | DT-10000-JUMBO (3 Color) | DT-10000-JUMBO (4 Color) |
|---|---|---|---|---|
| Drive | Mechanical Driven | Mechanical Driven | Mechanical Driven | Mechanical Driven |
| Max Print Area (LxW) | 900 x 250mm (35.4" x 9.8") | 900 x 250mm (35.4" x 9.8") | 900 x 250mm (35.4" x 9.8") | 900 x 250mm (35.4" x 9.8") |
| Max. Print Speed | 22 pcs/min | 22 pcs/min | 22 pcs/min | 22 pcs/min |
| Registration Tolerance | +/- 0.3-0.5 mm | +/- 0.3-0.5 mm | +/- 0.3-0.5 mm | +/- 0.3-0.5 mm |

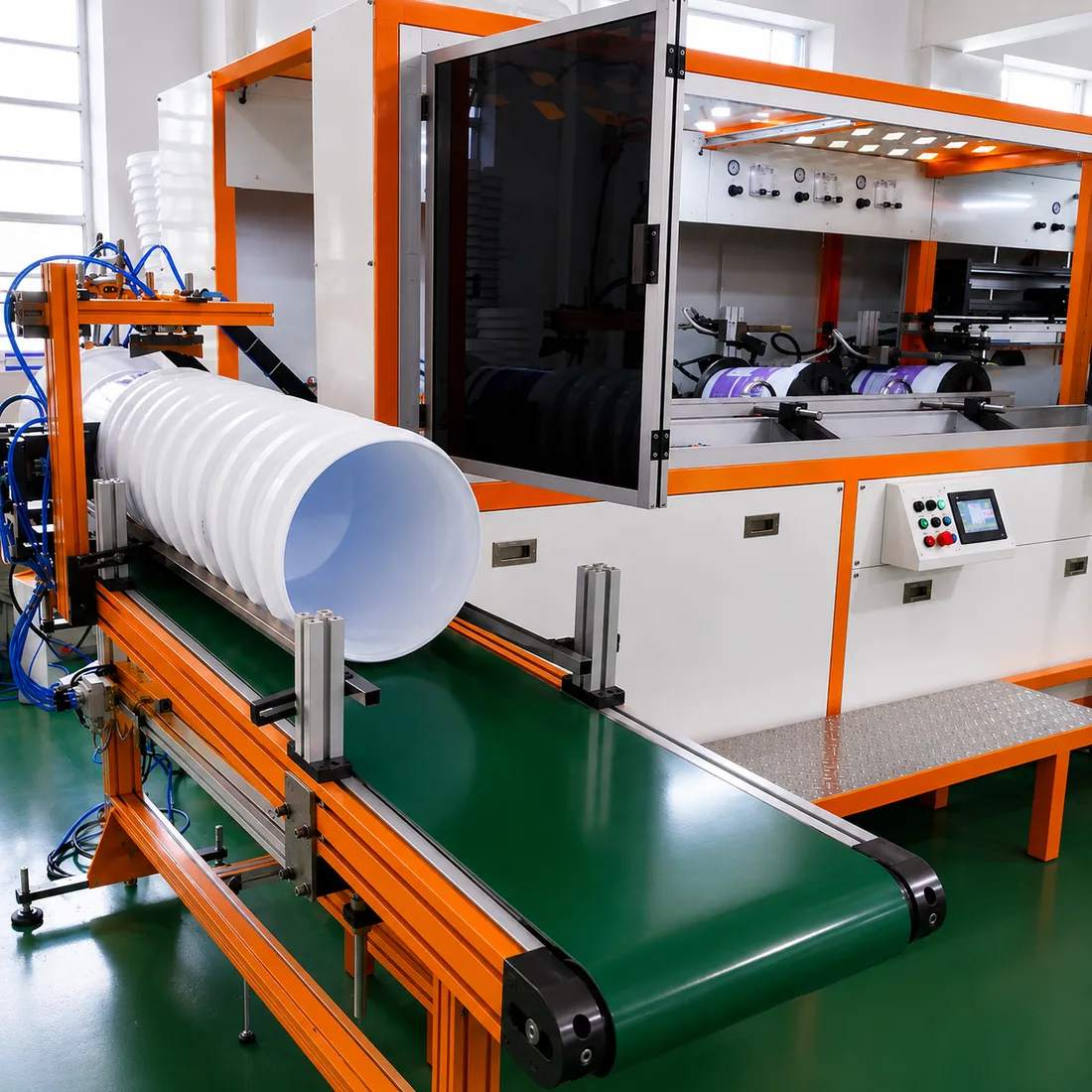

| Infeed Conveyor | 2 meters | 2 meters | 2 meters | 2 meters |

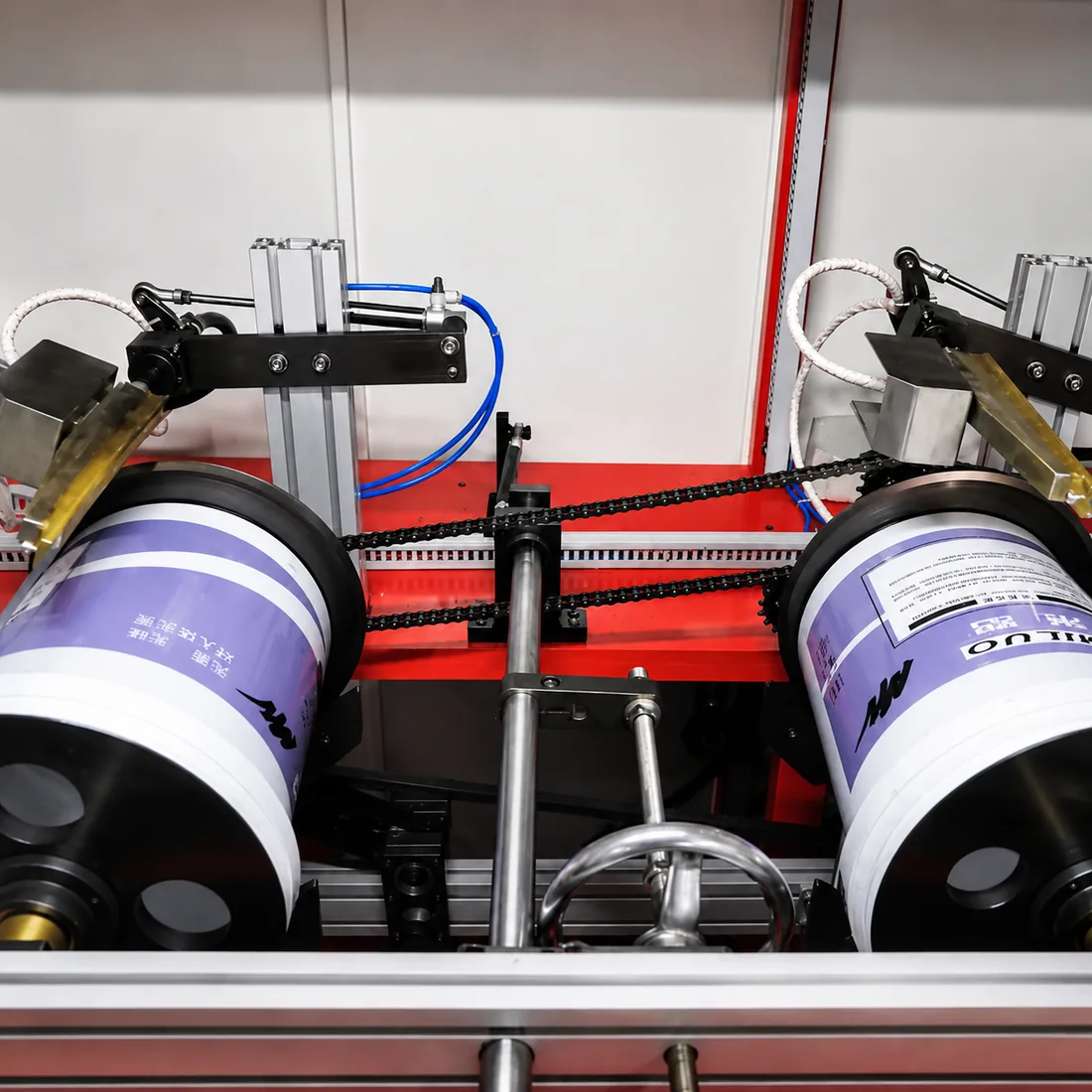

| Flame Treating System | 2 units, LP gas | 2 units, LP gas | 2 units, LP gas | 2 units, LP gas |
| Main Motor | ITALY MOTOVARIO/SITI | ITALY MOTOVARIO/SITI | ITALY MOTOVARIO/SITI | ITALY MOTOVARIO/SITI |

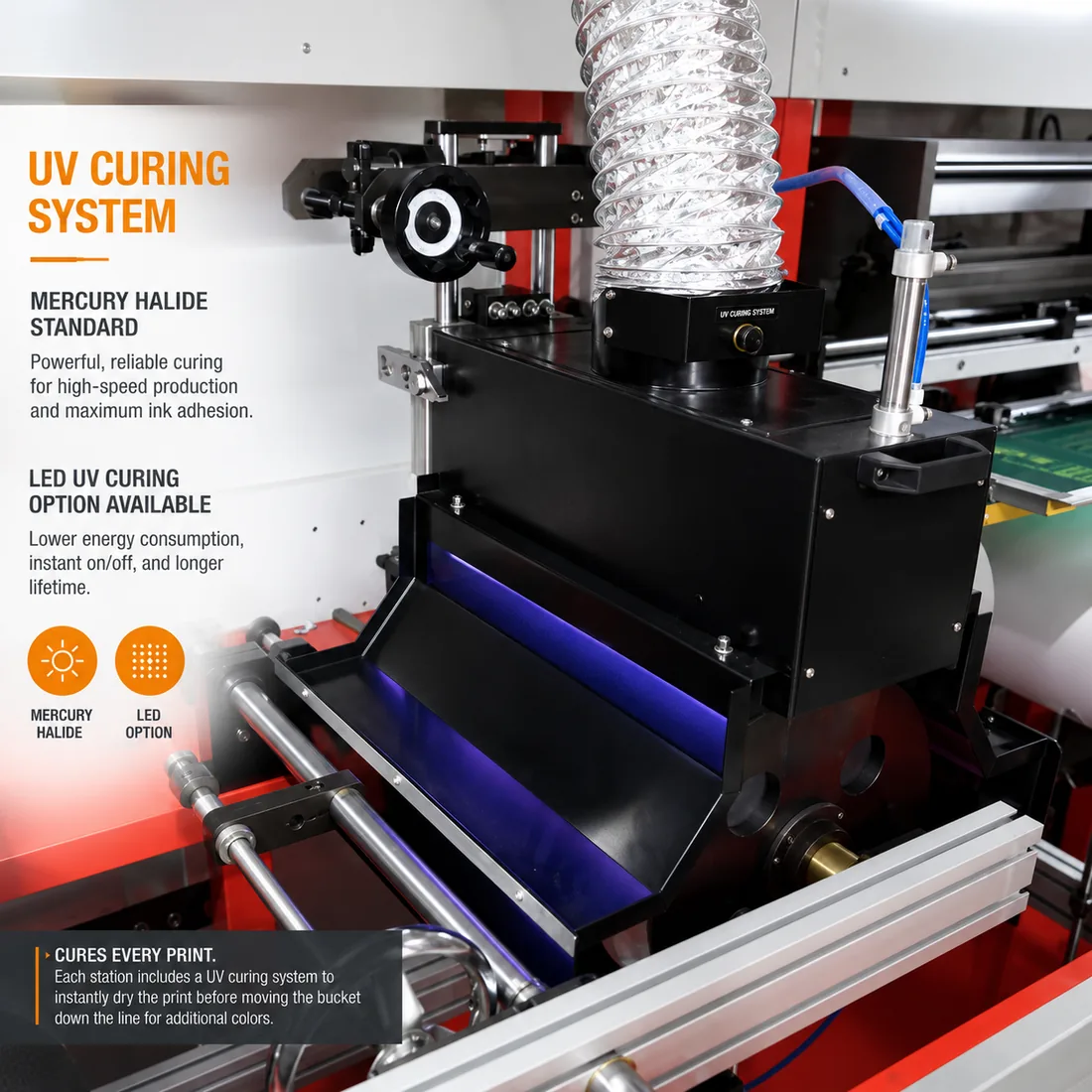

| UV System | HPE UV System, 5KW | HPE UV System, 5KW per ea. | HPE UV System, 5KW per ea. | HPE UV System, 5KW per ea. |

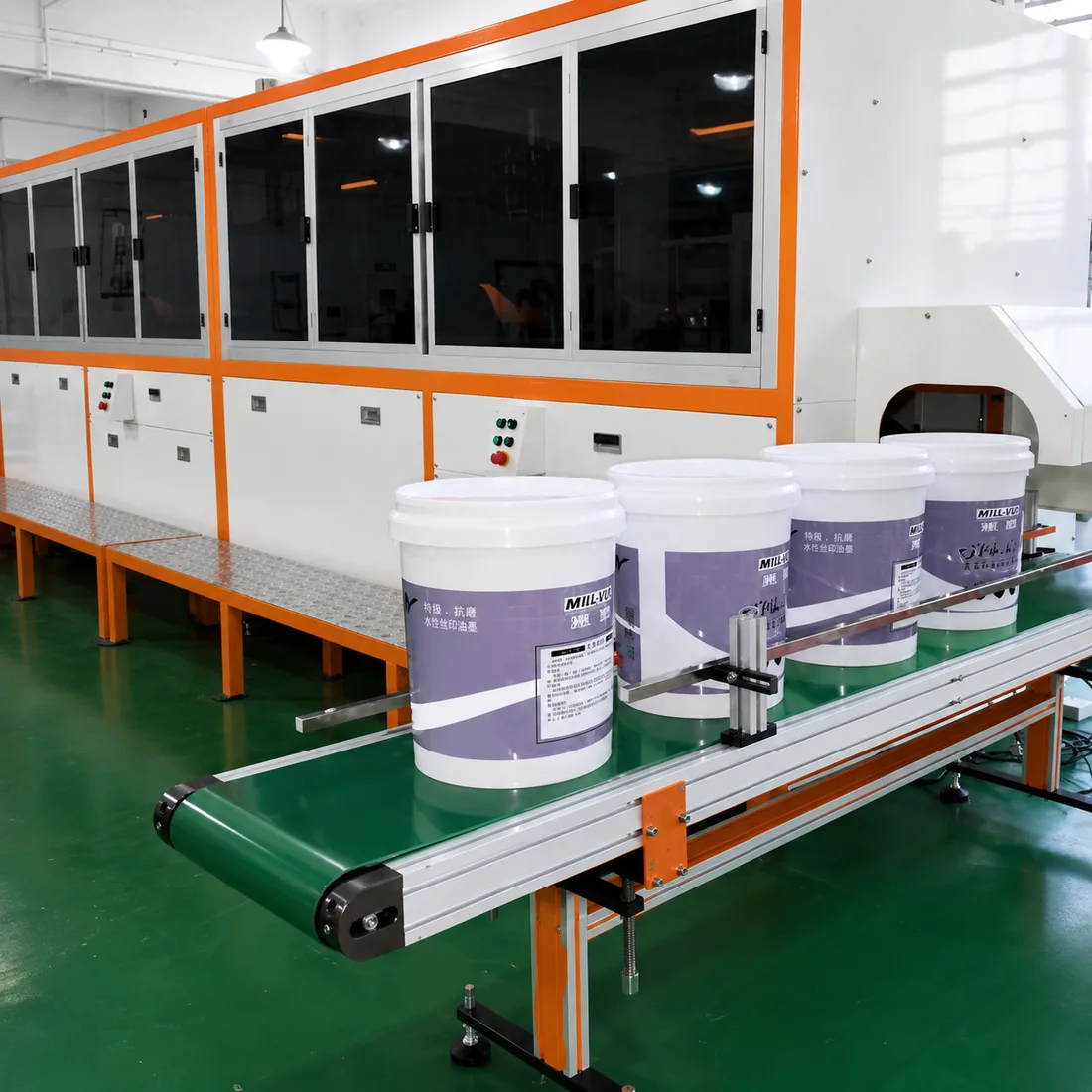

| Outfeed Conveyor | 2 meters | 2 meters | 2 meters | 2 meters |
| Control System | Panasonic PLC & Omron Touch Screen | Panasonic PLC & Omron Touch Screen | Panasonic PLC & Omron Touch Screen | Panasonic PLC & Omron Touch Screen |
| Electrical | 380V-480V 3phase 50Hz-60Hz | 380V-480V 3phase 50Hz-60Hz | 380V-480V 3phase 50Hz-60Hz | 380V-480V 3phase 50Hz-60Hz |
| Dimensions (LxWxH) | 5802 x 1510 x 2300mm (228.4" x 59.4" x 90.6") | 8704 x 1510 x 2300mm (342.7" x 59.4" x 90.6") | 11606 x 1510 x 2300mm (457.1" x 59.4" x 90.6") | 14508 x 1510 x 2300mm (571.4" x 59.4" x 90.6") |
| Weight | 2500 KG (5511 lbs) | 4300 KG (9480 lbs) | 6100 KG (13448 lbs) | 7900 KG (17416 lbs) |
