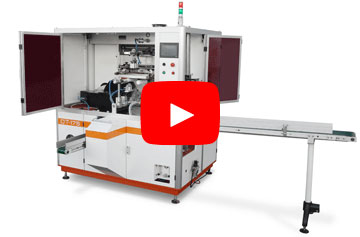

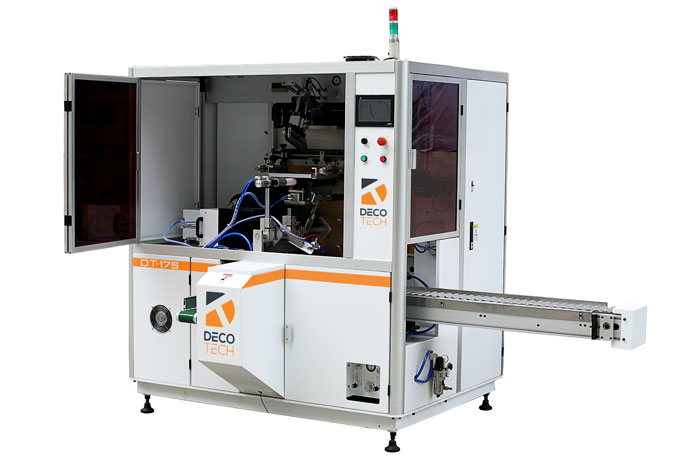

DT-175S 3/4 Automatic UV Tube Screen Printer
One color automatic UV screen printer for plastic and metal tubes.
Machine Type: One Color Automatic UV Tube Screen Printing Machine
The DT-175S is a one color automatic UV screen printer that has been updated for 2025 with a servo driven screen printing head (horizontal axis). The DT-175S is well suited for screen printing on flexible or rigid plastic or metal tubes, plastic jars, and lids, medical vials, syringes, and other cylinders up to 75mm in diameter. The DT-175S UV cured screen printing machine offers increased productivity over any semi-automatic solutions and this system holds unrivalled value for the money. The DT-175S is driven by a 12 station vertically mounted AC motor driven rotary indexing table that is equipped with a high-end Transtechno brand (Italian) drive motor. The screen printing head is servo driven as well as the infeed conveyor (application specific). The DT-175S automatic screen printer is also equipped with a HPE brand UV curing unit which produces high intensity (3.6 KW) curing power and as an option can be outfitted with LED UV unit. The DT-175S is equipped with servo driven infeed conveyor belt for automatic feeding of parts onto the mandrels with a mechanical pusher-arm and the system also includes flame pre-treatment station, de-ionizing station, SICK brand optical re-registration system (optional) for alignment of multi-passes with precise color to color alignment. For further info please contact the experts at (714) 639-DECO to discuss your particular needs and application.
FEATURES
High precision AC motor driven vertical rotary indexer (12 stations)
Servo driven screen printing head (horizontal axis)
Panasonic Microprocessor controlled with Omron touch screen

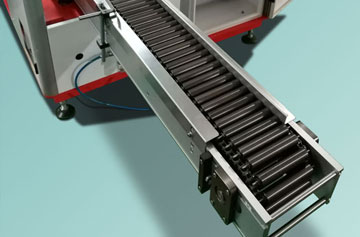

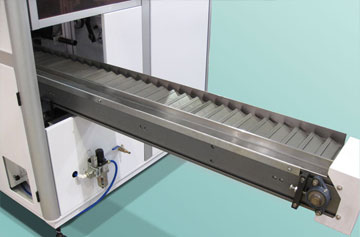

Servo indexed In-feed loading conveyor with auto-unloading
Quick and easy set-up and changeovers
Optical re-registration device (optional and quoted upon request per application)
Adjustable squeegee angle and height
Up to 75 x 230mm (2.95" x 9.06") print area
HPE brand UV Curing unit
Printing speeds up to 60ppm
SPECIFICATIONS
| Technical Data | DT-175S |
|---|---|
| Round Tube Dimensions:: | Diameter: 10 to 75 mm (min/max) .394" to 2.95" (min/max) Height: 20 to 230 mm (min/max) .787" to 9.05" (min/max) |
| Max Printing Area: | 236 x 170mm (9.29" x 6.69") |
| Production Speed: | Up to 3,600 pcs/ hour typical 3,000-3,200 |
| Air Consumption: | 85 Liter per minute max. |
| Air Pressure:: | 6-8 Bars (80psi) |
| Gas Consumption: | 5 Liter per hour max. |
| Electrical Supply: | 380/480V 3 Phase/ 50/60Hz. 10 to 15 Amps |
| Power Consumption: | Approx. 4.5 KW |
| Machine Color: | White |
| Machine Dimension (LxWxH): | 1,500 x 1,180 x 1,950mm (59" x 46.5" x 75") |
| Weight: | Approx. 1,500 Kg. (3,300 lb.) |
